S product name: NJM2903

S function name: single-supply dual comparator

S profile

NJM2903/2403 includes two independent precision voltage comparator, these two the biggest disturbance voltage comparator specifications as low as 5.0 mV, specifically designed to work with wide voltage range with single power supply. It can also be used separation of power, low power supply current consumption does not depend on the size of the power supply voltage. NJM2903/2403 with unique characteristics: although in a single power supply voltage, the input common-mode voltage range includes ground. Applications include limit comparator, simple AD converter; Pulse, square wave, time delay generator; Wide range of VCO; MOS clock timer; Multivibrator and high voltage digital logic gates. NJM2903/2403 is designed to directly with TTL and MOS. When both in positive and negative power supply work, NJM2903/2403 will be directly exchanged with MOS logic, at this point they low current consumption has obvious advantages than standard comparator.

S characteristics

Low working voltage (v to 36 v + + 2)

When single power supply work

Low open collector output

Low output current irrigation (15 ma @ 2403)

Low bipolar technology

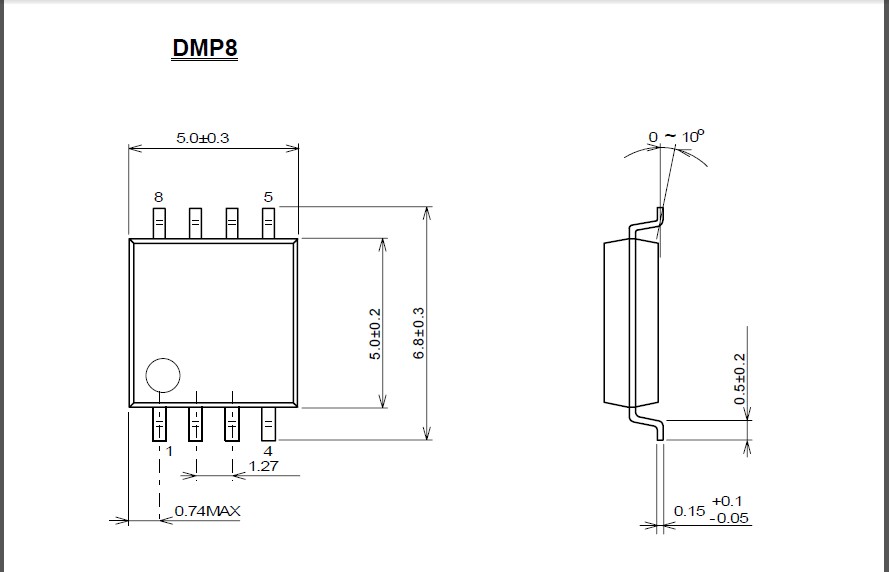

Low encapsulation (DIP8 / DMP8 / SIP8 / SSOP8 / TVSP8 / SOP8 JEDEC 150 mil (NJM2903 only))
